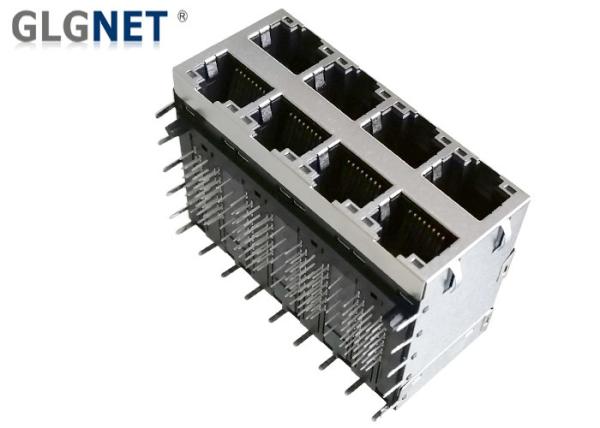

RJ45 Multiple Port Connectors 2x4 RJ45 Modular Jack Supports 5G Ethernet

1. GLGNET 2x4 5G RJ45 Modular Jack (JDLM4T86C) Parameters

General
Status	Active
Category	Modular Jacks/Plugs
Part #	JDLM4T86C
Component Type	PCB Jack
Magnetic	Yes, 5G Base-T
Overview	Magnetic Modular Jacks
Power over Ethernet (PoE)	Non POE
Product Name	Magnetic Jack, Modular Jack 8/8, RJ45
Physical
Housing Color	Black
Flammability	UL94V-0
Tab	N/A
Jack Height (mm)	25.88
Jack Length (mm)	41.12
JackWidth (mm)	58.98
Soldering Foot Length (mm)	3.2
Contact Mating Area Plating	50u" Gold Plating, can be customed as 1.8", 3u", 6u", 15u", 30u", 50u"
EMI Spring	Yes
Lightpipes/LEDs	Light pipes
Material - Metal	Brass, Phosphor Bronze, Nickel
Material - Plating Mating	Gold
Material - Plating Termination	Tin
Material - Plastic	High Temperature Thermoplastic(PA46)
Orientation	Right Angle (Side Entry)
PCB Locator	Yes
PCB Retention	Yes
Packaging Type	Tray
Pitch - Termination Interface	1.27mm
Ports	2x4
Storage Temperature	0° to +70°C
Temperature Range - Operating	-40° to +°C
Waterproof / Dustproof	No
Electrical
Grounding to PCB	Yes
Grounding to Panel	Panel Ground Tab
Shielded	Yes

Turns Ratio	1:1±2%
Open Circuit Inductance (ocl)	1600uH MIN@ 100KHz/100mV with 8mA DC Bias for (Channel 1,2,3,4)
Insertion Loss (IL)	-0.5dB MAX @ 1MHz – 50MHZ; -1.0dB MAX @ 50MHz – 125MHZ; -2.0dB MAX @ 125MHz – 200MHZ; -2.5dB MAX @ 200MHz – 250MHZ;
Return Loss (RL) Z out = 100 OHM	-20dB MIN @ 1MHz – 50MHZ; -20+15LOG(f/40MHz) dB MIN @ 50MHz – 250MHZ;
Crosstalk Adjacent Channels	-30dB MIN @ 1MHz – 125MHZ -25dB MIN @ 125MHz – 250MH
Common Mode Rejection Ratio (CMRR)	-23dB MIN @ 1MHz – 250MHZ
Common To Differential Mode Rejection (REF)	-23dB MIN @ 1MHz – 250MHZ
HI - POT	2250 VDC @ 60 Seconds

2. GLGNET 2x4 5G RJ45 Modular Jack (JDLM4T86C) Applications

Networking equipment

Equipment utilizing a network port

EMI Tabs RJ45 Multiple Port Connectors , RJ45 Modular Jack Supports 5G Ethernet

This is not a definitive list of applications for this product. It represents some of the more common uses.

3. GLGNET Advantages

We support Costom Service;
20 years experiences in Magnetic RJ45 Connectors
1500 Employees
58 R&D Engineers.
22000 square meters Factory
Our products are compliant with RoHS, REACH and UL certification
Long term Corporation with HUAWEI, ZTE, FOXCONN, XIAOMI, TCL and so on
20KK Prots / Month Capacity
ISO9001, ISO14001, QC080000, OHSAS18001, and IECC international management system certification
We have our Own Metal Tooling and Plastic Tooling
Has 3 LS-WEDM Machines
Has 12 WEDM Machines and 8 CNC Machines
Has 20 Grinding Machines and 12 Electrical Discharge Machines
Has 30 Stamping Machines
Has 55 Plastic Injection Machines
Has Automatic Assembly Workshops

4. GLGNET 2x4 5G RJ45 Modular Jack (JDLM4T86C) Mechanical Drawing :
